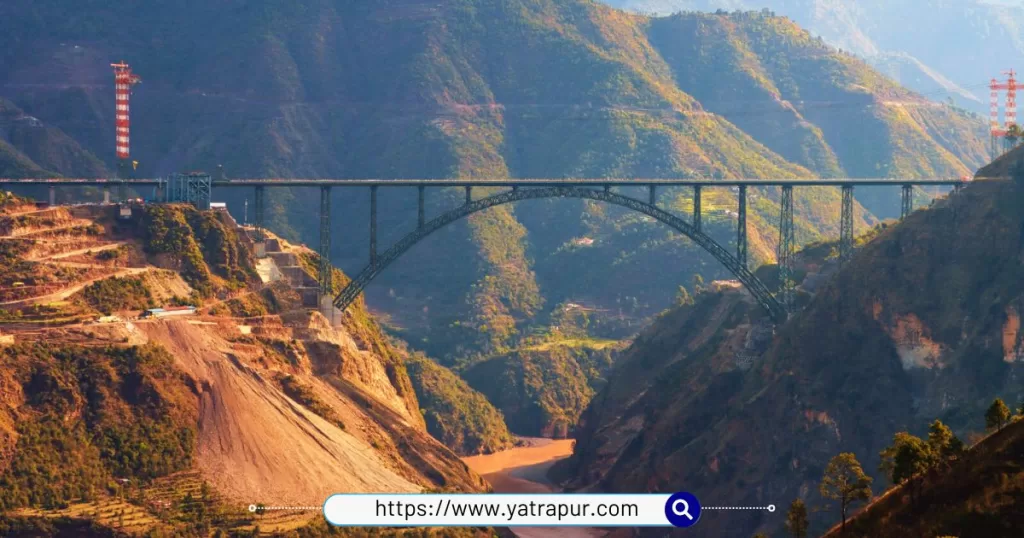

Chenab Rail Bridge, World’s Highest Railway Arch Bridge

Last Updated on January 18, 2026 by Yatrapur

The Chenab Rail Bridge is an amazing example of engineering skill, standing tall at 359 meters (1,178 feet) above the Chenab River in Jammu and Kashmir. It's the world's highest railway arch bridge and a really important part of India's big plan to connect Udhampur, Srinagar, and Baramulla by rail.

This incredible bridge was just opened and is now fully operational. It's a huge step because it connects the Kashmir Valley to the rest of India by train, something that wasn't possible before, especially during bad weather. Building it was a massive challenge because of the tough mountains and tricky logistics. But now, it's set to bring big changes, improving how people travel, boosting business, and helping tourism in the region.

Location - The Chenab Rail Bridge is located in the Reasi district of Jammu and Kashmir, India. It spans the Chenab River gorge, connecting the villages of Bakkal and Kauri.
Inauguration - The Chenab Rail Bridge was officially inaugurated by Prime Minister Narendra Modi on Friday, June 6, 2025. On the same day, two Vande Bharat Express trains running between Katra and Srinagar were flagged off. Regular train services commenced on Saturday, June 7, 2025.
Cost - The Chenab Rail Bridge was constructed at an approximate cost of ₹1,486 crore (US$180 million).
Train Speed: The bridge is designed to handle train speeds of up to 100 km/h.
Lifespan: It has a designed operational lifespan of 120 years.

The Chenab Rail Bridge is an extraordinary feat of engineering, making it a landmark in India's infrastructure development. Here's a comprehensive look at its various aspects:

Top 10 Facts
Length, Height, and Comparison
Technology Used
Earthquake and Blast Proof
Special Facts
USBRL (Udhampur-Srinagar-Baramulla Rail Link)
Engineering Used

Top 10 Facts about Chenab Rail Bridge

World's Highest: It stands at an astonishing height of 359 meters (1,178 feet) above the Chenab River, making it the world's highest railway arch bridge.
Taller than Eiffel Tower: It is 35 meters taller than the iconic Eiffel Tower in Paris.
Part of USBRL: A critical component of the Udhampur-Srinagar-Baramulla Rail Link (USBRL) project, connecting the Kashmir Valley to the rest of India by rail.
All-Weather Connectivity: Provides crucial all-weather rail access to the Kashmir Valley, which was often cut off during harsh winters due to snow and landslides.
Designed for Extremes: Engineered to withstand wind speeds up to 266 km/h, earthquakes up to magnitude 8 on the Richter scale, and temperatures ranging from -20°C to 45°C.
Blast-Proof: Uniquely designed to be blast-proof, with inputs from the Defence Research and Development Organisation (DRDO).
Long Lifespan: Built with a projected operational lifespan of 120 years.
Massive Steel Usage: Required over 28,000 metric tonnes of steel for its construction.
Sophisticated Technology: Utilized advanced technology like Tekla software for 3D modeling and structural health monitoring systems with over 100 sensors.
Reduced Travel Time: Significantly reduces travel time between Katra and Srinagar to approximately 3 hours, compared to 6-8 hours by road.

Length, Height, and Comparison to Others

Total Length: The bridge spans 1,315 meters (4,314 feet) across the river gorge. This includes a 530-meter approach bridge and a 785-meter deck arch bridge.
Height above Riverbed: 359 meters (1,178 feet).
Arch Span: The main steel arch has a span of 467 meters (1,532 feet), one of the longest arch spans ever constructed.
Comparison: As mentioned, it surpasses the Eiffel Tower (324 meters) in height by 35 meters, making it the highest railway arch bridge globally.

Technology Used in Chenab Rail Bridge

The construction of the Chenab Rail Bridge involved cutting-edge technology and innovative solutions due to the challenging terrain and extreme conditions:

Two-Rib Steel Arch Design: The bridge features a two-rib steel arch design with an open spandrel construction. This means the rail deck sits on vertical supports rising from the arch rather than being continuous.
Weathering Steel: Corrosion-resistant weathering steel was used to withstand extreme temperature variations ($−20∘Cto45∘C$).
Advanced Cable Cranes: The world's tallest cable crane, with a 127m high pylon, was used to erect segments, each weighing about 34 MT.
Phased Array Ultrasonic Testing (PAUT): Used for the first time in Indian Railways, PAUT machines tested the welds to ensure structural integrity. The bridge required approximately 584,000 km of welding.
Structural Health Monitoring (SHM) Systems: Over 100 sensors are embedded in the bridge to continuously monitor wind parameters, environmental conditions, and structural responses like vibration and load. This data triggers alerts if values exceed safety parameters.
3D Modeling Software (Tekla): Sophisticated software like Tekla was used for precise 3D modeling of the entire structure, including welding grooves, ensuring compatibility of components during installation.
Self-Compacting Concrete: The viaduct piers are made of self-compacting concrete filled into steel boxes.
Specialized Bearings: Swiss firm Mageba supplied spherical stopper bearings for the bridge.
Wind Tunnel Testing: Special wind tunnel tests were conducted to assess design wind parameters due to the extremely rough topography.
Geological Surveys and Adjustments: Constant geological surveys and real-time modifications to construction plans were necessary due to the fractured Himalayan geology and unstable slopes. Cement grouting, steel rod reinforcement, and deep excavations were used for foundation stabilization.

Earthquake and Blast Proof

Yes, the Chenab Bridge is designed to be highly resilient against both seismic activity and blasts:

Earthquake Resistance: It is built to withstand earthquakes up to a magnitude of 8 on the Richter scale, falling in Zone V (highest risk seismic zone). Seismic analysis was done with IIT Delhi and IIT Roorkee.
Blast Proof: The bridge is engineered to withstand high-intensity explosions equivalent to about 40 tonnes of TNT. The Defence Research and Development Organisation (DRDO) provided assistance in developing its blast-proofing capabilities.
Structural Resilience: The design ensures the bridge can remain operational even if one of its piers fails, albeit at a restricted speed of 30 km/h.

Special Facts about Chenab Rail Bridge

Remote Site Challenges: The bridge's construction involved overcoming immense logistical hurdles due to the remote and difficult terrain, requiring the construction of over 26 km of motorable roads before main construction could even begin.
22-Year Dream: The project was approved in 2003 and took over two decades to complete, facing delays due to stability and safety concerns in the challenging Himalayan geology.
National Integration: Beyond its engineering marvel, the bridge is seen as a symbol of national integration, physically linking the Kashmir Valley to the Indian mainland and fostering a sense of unity.
Economic and Tourism Boost: The bridge and the USBRL project are expected to significantly boost tourism, trade, and economic development in Jammu and Kashmir.
Design and Build Contract: The project was carried out on a "design and build" contract model.

USBRL (Udhampur-Srinagar-Baramulla Rail Link)

The Chenab Rail Bridge is a pivotal part of the Udhampur-Srinagar-Baramulla Rail Link (USBRL) project.

Total Length: The USBRL project is 272 kilometers long.
Components: It includes 36 tunnels spanning over 119 km and 943 bridges across deep valleys and rivers.
Goal: The primary objective of USBRL is to provide all-weather rail connectivity to the Kashmir Valley, integrating it fully with the Indian railway network.
Electrified Section: The USBRL project is a fully electrified section.
Cost: The entire USBRL project is estimated to cost around ₹44,000 crore.
Strategic Importance: It enhances strategic mobility for defense forces and offers faster, safer, and more reliable transportation options for passengers and freight, reducing isolation for locals.

Engineering Used

Material Quantity: The construction utilized approximately 28,660 tonnes of steel, 66,000 cubic meters of concrete, and 84 km of bolts and cables.
Main Span: The main span of the arch measures 467 meters.
Number of Spans: The bridge consists of 17 spans.
Piers: The spans are supported by steel piers, with the highest measuring 133.7 meters (439 feet).
Superstructure: The superstructure comprises 161 girder plates, each 8 meters long and 8 mm thick.
Width: The bridge is about 13.5 meters wide and can accommodate double railway tracks.
Arch Structure Weight: The main bridge arch structure alone weighs 10,619 tonnes.
Pylons: It is supported by two cable-attached pylons measuring 130 meters and 100 meters respectively.
Designers and Contractors: The project involved several key players:
1. Designers: WSP Finland (viaduct and foundation), Leonhardt Andrä und Partner (steel arch).
2. Construction: A joint venture of Afcons Infrastructure (India), Ultra Construction & Engineering (South Korea), and VSL India.
3. Oversight: Konkan Railway Corporation (Indian Railways).
4. Specialized Contributions: Indian Institute of Science (foundation protection), IIT Delhi and IIT Roorkee (seismic analysis, slope stability), DRDO (blast-proofing), Steel Authority of India (steel supply).
Transition Curve: The bridge lies on a transition curve, adding complexity to its design and construction.
